Cleanbio Air-Fit Photocatalytic UV-LED Air Purifier & Sterilizer Series (Air-Fit 50, Air-Fit 30 & Air-Fit 20)
Advanced air purifier and sterilizer system utilizing Titanium Dioxide (TiO2) photocatalysis and ozone-free UV-C LEDs, combined with 4-stage filtration (Antibacterial Copper, Activated Carbon, 99.9% Antivirus, and HEPA H13) to eliminate airborne pathogens and toxic gases.
Technical Specifications
| Available Models | Air-Fit 50 (Tower 1550 mm), Air-Fit 30 (Tower 1196 mm), Air-Fit 20 (Wall-Mount) |
|---|---|
| Dimensions (W x D x H) | 300x315x1550 mm (50) / 300x315x1196 mm (30) / 652x355x175 mm (20) |
| Net Weight | 32 kg (Air-Fit 50) / 27 kg (Air-Fit 30) / 15 kg (Air-Fit 20) |
| Power Consumption | 130 W (Air-Fit 50) / 100 W (Air-Fit 30) / 60 W (Air-Fit 20) |
| Air Sterilization Technology | Semiconductor UV-C LED (275 nm) + Visible LED + Titanium Dioxide (TiO2) |
| 4-Stage Filter Assembly | Antibacterial Copper Filter, Activated Carbon, Antivirus Filter, True HEPA H13 |
| International Certifications | CE, KIP, GA Good Air, PSE Japan, BSMI, ISO 9001, ISO 14001, Korea MoND |
Full Product Description
Cleanbio Air-Fit is an active air purifier and sterilizer system. While conventional air purifiers merely trap dust on filter media without killing trapped pathogens, Cleanbio Air-Fit integrates years of specialized air engineering to provide dual-action protection: high-efficiency 4-stage mechanical filtration coupled with semiconductor UV-C LED photocatalytic sterilization to destroy fine particulates, toxic gases, and live airborne viruses.
Comprehensive Breakdown of All Available Models:

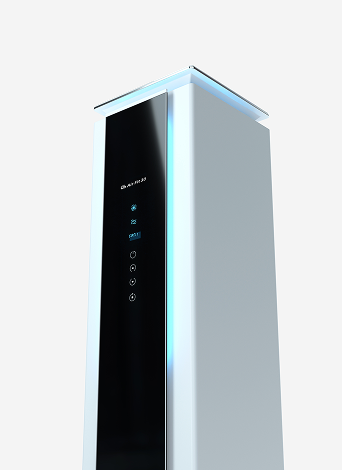

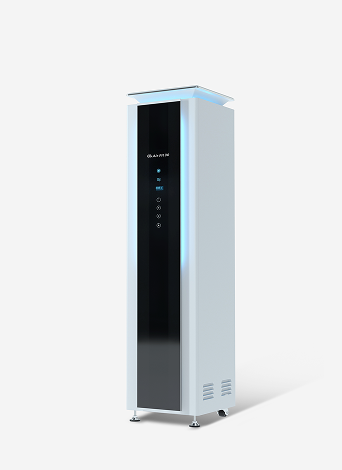

1. Cleanbio Air-Fit 50 (High-Capacity Floor Standing Tower):
• Form Factor: Sleek, high-profile vertical floor-standing tower.
• Dimensions: 300 x 315 x 1,550 mm | Net Weight: 32 kg.
• Power Consumption: 220V, 50/60 Hz, 130 Watts.
• Target Applications: High-traffic spacious environments such as international airport terminals, hospital grand lobbies, museums, university auditoriums, banking halls, and manufacturing facilities.
• Sterilization Core: Tri-Active UV-C LED + Visible Light LED + Dual Titanium Dioxide (TiO2) photocatalyst.
• Filter Set: Complete 4-stage filter assembly (Copper, Carbon, Antivirus, HEPA H13).

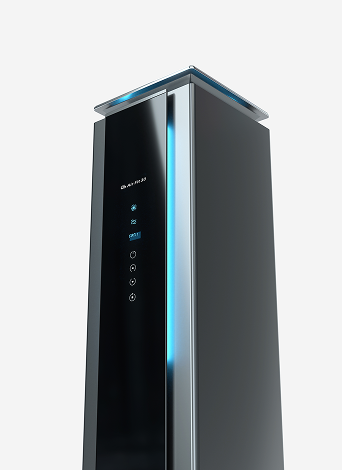

2. Cleanbio Air-Fit 30 (Mid-Capacity Floor Standing Tower):
• Form Factor: Medium-height vertical floor-standing tower.
• Dimensions: 300 x 315 x 1,196 mm | Net Weight: 27 kg.
• Power Consumption: 220V, 50/60 Hz, 100 Watts.
• Target Applications: Analytical laboratories, public libraries, educational classrooms, corporate conference rooms, bank customer branches, and medical clinics.
• Sterilization Core: UV-C LED + Visible Light LED + Titanium Dioxide (TiO2) photocatalyst.
• Filter Set: Complete 4-stage filter assembly (Copper, Carbon, Antivirus, HEPA H13).

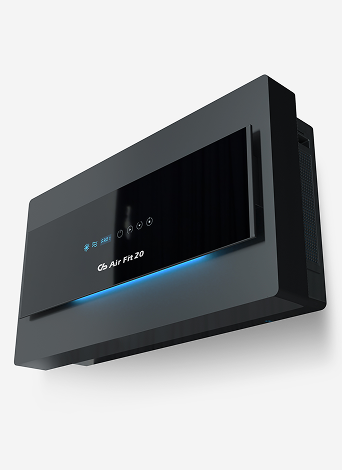

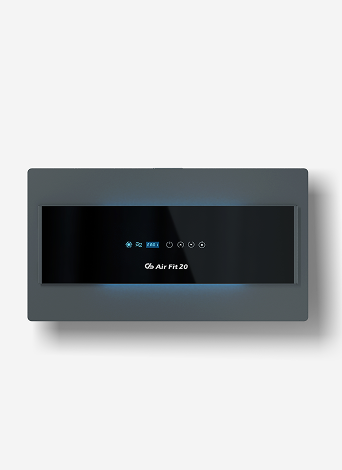

3. Cleanbio Air-Fit 20 (Horizontal Wall-Mounted Unit):
• Form Factor: Horizontal modern wall-mount configuration saving precious floor area.
• Dimensions: 652 x 355 x 175 mm | Net Weight: 15 kg.
• Power Consumption: 220V, 50/60 Hz, 60 Watts.
• Target Applications: Hospital inpatient rooms, negative-pressure isolation wards, outpatient treatment rooms, doctors' consulting suites, and space-constrained laboratories.
• Sterilization Core: UV-C LED + Visible Light LED + Titanium Dioxide (TiO2) photocatalyst.
• Filter Set: Complete 4-stage filter assembly (Copper, Carbon, Antivirus, HEPA H13).
Air-Fit 4-Stage Advanced Filtration System:
1. Antibacterial Copper Filter: Intercepts large dust particles while delivering contact antimicrobial action killing 99% of E. coli, Typhoid, and Staphylococcus.
2. Activated Carbon Filter: Adsorbs volatile organic compounds (VOCs), chemical vapors, household odors, Ammonia, and Toluene (99.1% deodorization).
3. Antiviral Specialized Filter: Jointly engineered with KRIBS (Korea Research Institute of Bio-medical Science), demonstrating 99.9% virucidal efficacy against COVID-19 (SARS-CoV-2) and Swine Flu (H1N1).
4. True HEPA Filter (Grade H13): Achieves 99.98% particulate capture efficiency for fine and ultrafine particles down to 0.3 microns (PM2.5).
Cleanbio UV-C LED vs. Conventional Mercury UV Lamp:
• Optimized Wavelength: Dedicated 275 nm single wavelength engineered for lethal microbial nucleic acid disruption.
• Long Lifespan: 30,000 to 50,000 operational hours (compared to only 5,000 – 8,000 hours for mercury lamps).
• Environmentally Safe: Zero mercury content and zero harmful ozone generation (measured at a negligible 0.002 µmol/mol).
• Energy Efficient: Module consumes ≤ 50W.
• Zigzag Airflow Aerodynamics: Maximizes UV-photocatalytic exposure residence time before delivering purified air back into the room.
Global Certifications & Quality Accreditations:
Independently validated by international testing institutes (KRIBS, KCL, KOTITI, KTL). Accredited with CE Mark (Europe), KIP (Korean Innovative Products), GA (Good Air Certification), PSE (Japan), BSMI, ISO 9001, ISO 14001, and approved procurement recognition by the Ministry of National Defense of South Korea.
