Lovibond Spectrophotometer Series XD 7000 (VIS) & XD 7500 (UV-VIS) with Reference Beam Optics
Premium analytical spectrophotometer series utilizing reference beam optics, automatic cuvette detection, integrated barcode recognition, and a brilliant 7-inch color display for advanced water analysis.
Technical Specifications
| Available Models | XD 7000 (VIS: 320 – 1100 nm) & XD 7500 (UV-VIS: 190 – 1100 nm) |
|---|---|
| Optical System | Grid Monochromator with Reference Beam and Beam Splitter |
| Light Source | Tungsten-Halogen (XD 7000) / Xenon Flash Lamp 500M Flashes (XD 7500) |
| Memory & Programmability | 5,000 data sets, 100 user-defined programs, 20 user profiles |
| Connectivity Interfaces | 1x RJ45 Ethernet, 1x USB-A Host, 1x USB-B Device |
| Dimensions & Net Weight | 422 x 195 x 323 mm / Weight: ~4.5 kg |
Full Product Description
The Tintometer Group presents the XD series spectrophotometers: Lovibond XD 7000 (VIS) and XD 7500 (UV-VIS). Incorporating modern reference beam optics and intelligent automation, the XD series satisfies the most demanding analytical standards across municipal drinking water, industrial wastewater, academic research, and accredited testing laboratories.
Model Breakdown within the Product Line:
1. Lovibond XD 7000 (VIS Spectrophotometer):
• Spectral Range: 320 – 1,100 nm (Visible spectrum scan range).
• Light Source: High-stability Tungsten-Halogen lamp.
• Target Applications: Routine colorimetric water quality monitoring, industrial effluent control, and environmental assays.
2. Lovibond XD 7500 (UV-VIS Spectrophotometer):
• Spectral Range: 190 – 1,100 nm (Full Ultraviolet and Visible spectrum).
• Light Source: Pulsed Xenon flash lamp engineered for extreme longevity (up to 500 million flashes).
• Target Applications: Direct UV measurements (SAC254, UVT, DOC surrogate, Nitrate-N direct UV), enzymatic assays, life science research, and comprehensive chemical profiling.
Key Innovations:
• Automatic Cuvette Recognition: Accommodates round vials (13, 16, 24 mm) and rectangular cuvettes (10, 20, 50 mm) without cumbersome adapter changes, instantly optimizing the optical calculation path.

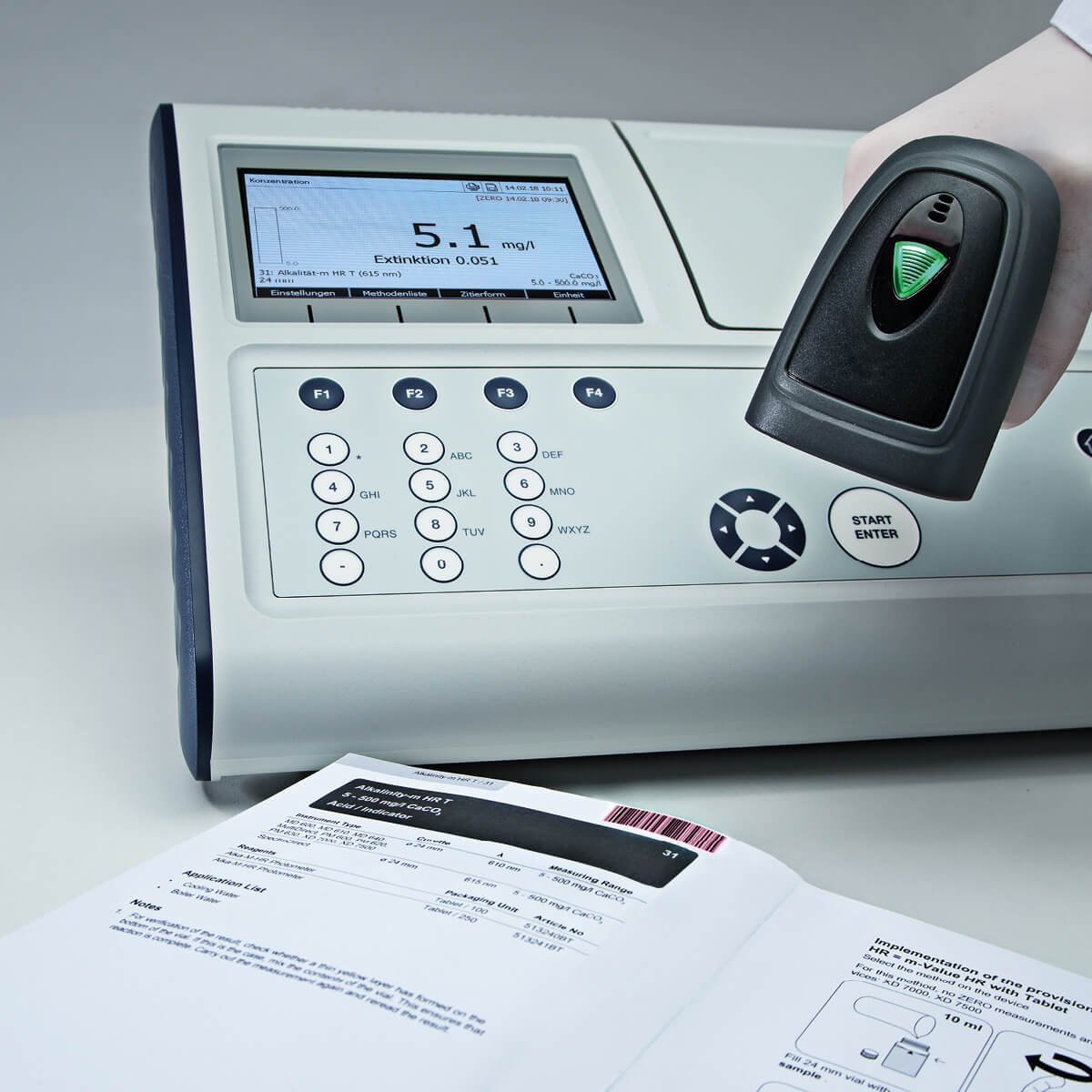

• Barcode Recognition System: Reads 2D barcodes printed directly on Lovibond tube test vials, auto-loading the measurement method, appropriate wavelength, and calibration curve instantaneously.
• Brilliant 7" High-Contrast Graphic Display: Renders spectral wavelength scans, time-course kinetic curves, and photometric results with superior clarity.
• Extensive Memory & GLP Quality Assurance: Stores 5,000 datasets (date, time, result, method, user ID), supports up to 100 user-programmable methods, and manages 20 individual password-protected user access tiers.

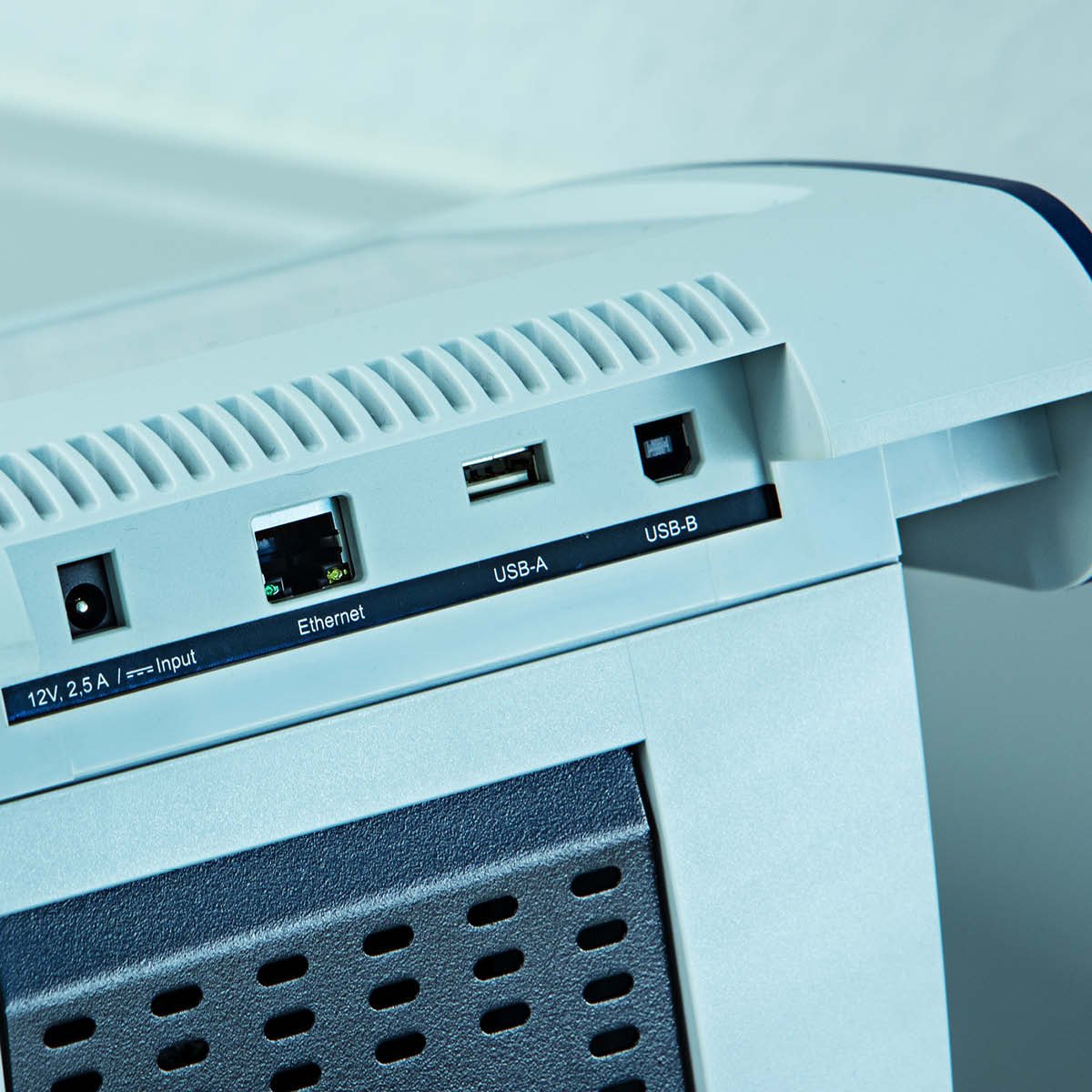

• Universal Connectivity: Features 1 x Ethernet RJ45, 1 x USB-A host (for USB flash drives, keyboards, barcode scanners, and printers), and 1 x USB-B device for seamless LIMS and PC interfacing.
Model Breakdown within the Product Line:
1. Lovibond XD 7000 (VIS Spectrophotometer):
• Spectral Range: 320 – 1,100 nm (Visible spectrum scan range).
• Light Source: High-stability Tungsten-Halogen lamp.
• Target Applications: Routine colorimetric water quality monitoring, industrial effluent control, and environmental assays.
2. Lovibond XD 7500 (UV-VIS Spectrophotometer):
• Spectral Range: 190 – 1,100 nm (Full Ultraviolet and Visible spectrum).
• Light Source: Pulsed Xenon flash lamp engineered for extreme longevity (up to 500 million flashes).
• Target Applications: Direct UV measurements (SAC254, UVT, DOC surrogate, Nitrate-N direct UV), enzymatic assays, life science research, and comprehensive chemical profiling.
Key Innovations:
• Automatic Cuvette Recognition: Accommodates round vials (13, 16, 24 mm) and rectangular cuvettes (10, 20, 50 mm) without cumbersome adapter changes, instantly optimizing the optical calculation path.
• Barcode Recognition System: Reads 2D barcodes printed directly on Lovibond tube test vials, auto-loading the measurement method, appropriate wavelength, and calibration curve instantaneously.
• Brilliant 7" High-Contrast Graphic Display: Renders spectral wavelength scans, time-course kinetic curves, and photometric results with superior clarity.
• Extensive Memory & GLP Quality Assurance: Stores 5,000 datasets (date, time, result, method, user ID), supports up to 100 user-programmable methods, and manages 20 individual password-protected user access tiers.
• Universal Connectivity: Features 1 x Ethernet RJ45, 1 x USB-A host (for USB flash drives, keyboards, barcode scanners, and printers), and 1 x USB-B device for seamless LIMS and PC interfacing.
