Lovibond MD 600, MD 610 & MD 640 Advanced Multi-Parameter & Fluorescence Photometer Series
Advanced analytical multi-parameter photometer series featuring 6 stable LEDs and interference filters, Bluetooth® connectivity, and specialized fluorescence optics (MD 640) for PTSA and fluorescein tracing.
Technical Specifications
| Available Models | MD 600 (Infrared), MD 610 (Bluetooth®), MD 640 (Photometer + Fluorometer PTSA) |
|---|---|
| Photometric Wavelengths | 6 Interference Filters: 430, 530, 560, 580, 610, 660 nm (Accuracy: ± 1 nm) |
| UV Excitation Wavelength | 375 nm (Dedicated to MD 640 for Fluorescence Testing) |
| PTSA Tracer Range | 10 – 1,000 ppb PTSA (MD 640) |
| Fluorescein Tracer Range | 10 – 400 ppb Fluorescein (MD 640) |
| Data Memory Storage | 1,000 datasets (MD 600) / 500 datasets (MD 610 & MD 640) |
| Interfaces & Network | Bluetooth® 4.0, RJ45 Internet Socket, Infrared (MD 600) |
| Dimensions / Weight | 210 x 95 x 45 mm / Weight: ~450 g (Unit) / 395 x 295 x 106 mm (Suitcase) |
Full Product Description
The Lovibond® MD 600 Series represents the pinnacle of handheld photometric instrumentation. Merging mobile flexibility with the analytical accuracy of benchtop laboratory spectrophotometers, these units feature a solid-state optical design with no moving mechanical components, guaranteeing maintenance-free reliability. Optics utilize six long-term stable LEDs coupled with precision interference filters (± 1 nm wavelength accuracy).
Model Breakdown within the Product Line:
1. Lovibond MD 600:
• Memory Capacity: Generous internal memory storing up to 1,000 comprehensive datasets.
• Interface: Infrared data transmission via optional IRiM cradle.
• Core Role: Heavy-duty workhorse for multi-parameter industrial, process, and wastewater analysis.

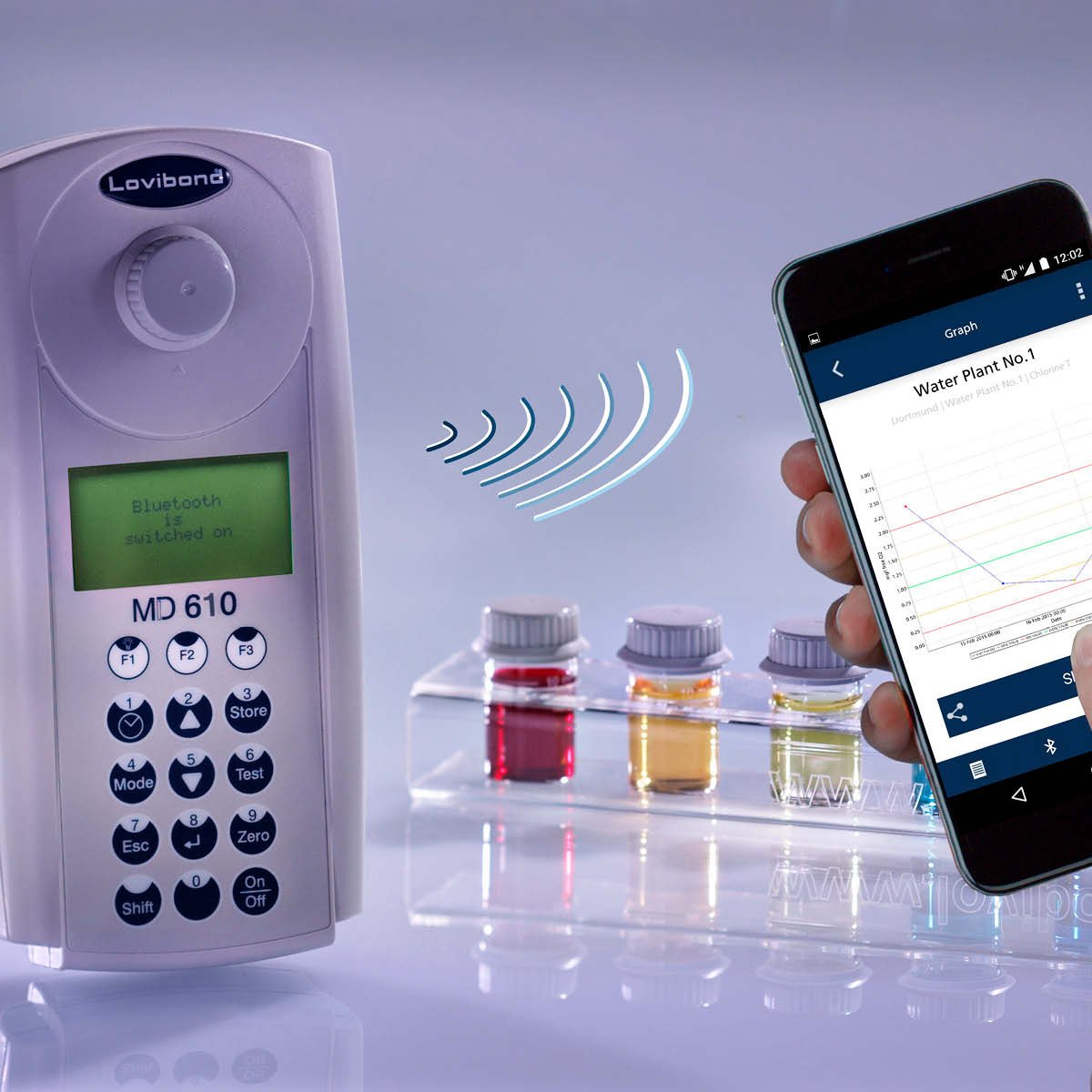

2. Lovibond MD 610:
• Integrated Bluetooth® 4.0: Direct wireless data synchronisation with mobile smartphones and tablets (iOS & Android AquaLX® app) or laptops for audit-ready reporting.
• Memory Capacity: Stores 500 comprehensive datasets.
• Firmware Updates: Integrated RJ45 Ethernet socket for downloading new analytical test methods and multi-lingual firmware packages via the internet.

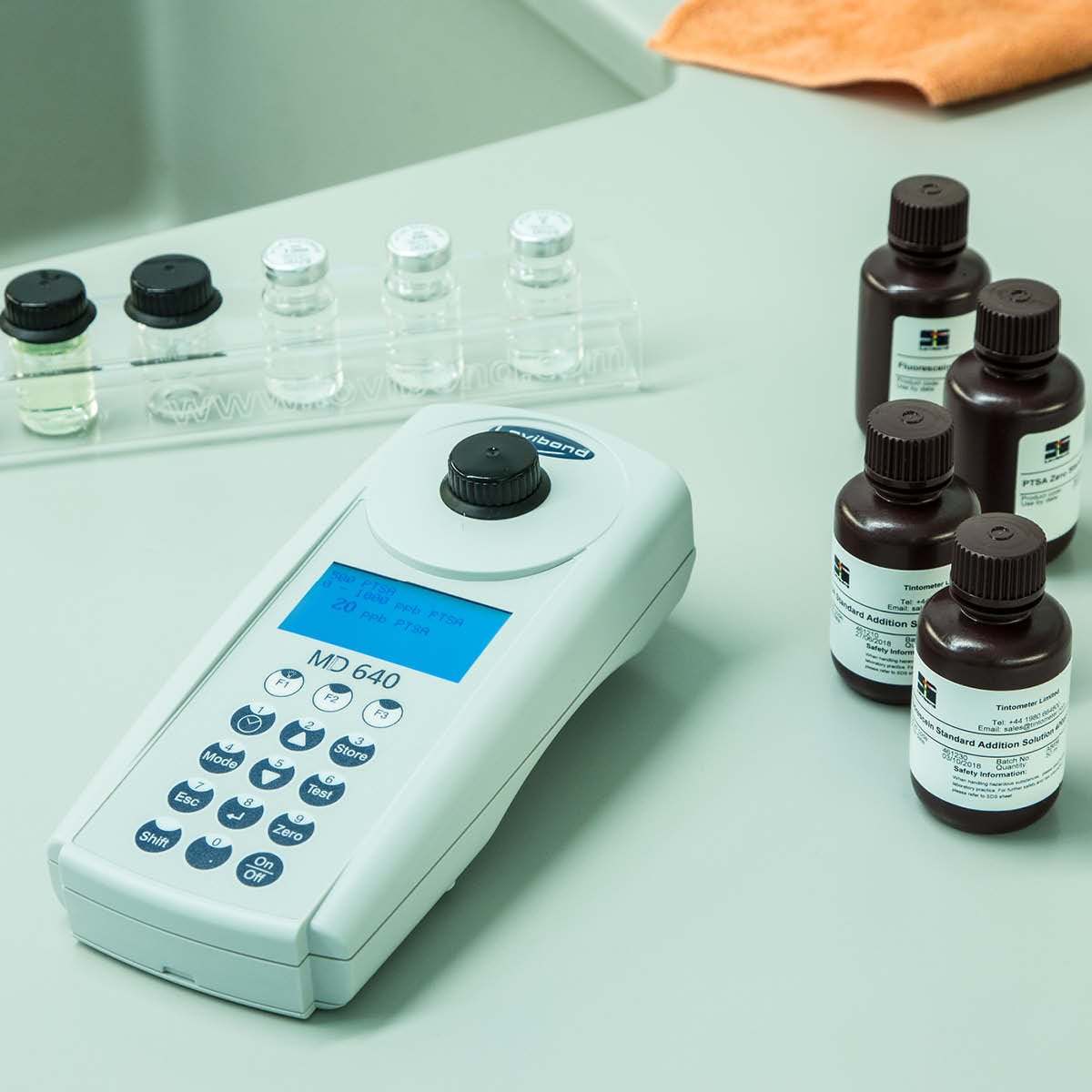

3. Lovibond MD 640 (Combined Photometer & Fluorometer):
• Dual-Technology Architecture: Integrates all standard multi-parameter photometric functions of the MD 610 with a dedicated 375 nm UV excitation fluorometer.
• Specialized Fluorescent Tracer Detection: Engineered specifically for automated chemical dosing control in industrial cooling towers and boiler loops:
- PTSA: 10 – 1,000 ppb (crucial for monitoring scale and corrosion inhibitor treatment levels).
- Fluorescein: 10 – 400 ppb.
• Prevents chemical overfeeding, reduces water treatment operational costs, and minimizes scaling across industrial heat exchangers.
Operator-Centric Ergonomics:
Large graphic backlit display, acid- and solvent-resistant membrane keypad with tactile feedback, auto-off timer (20 minutes), and multi-lingual user interface (German, English, French, Spanish, Italian, Portuguese, Polish, Indonesian, etc.).
