Lovibond MD 100, MD 110 & MD 200 Multi-Parameter Handheld Photometer Series
Waterproof (IP68) handheld multi-parameter photometer series utilizing high-quality interference filters, multi-wavelength LEDs, Bluetooth® connectivity (MD 110), and One Time Zero functionality.
Technical Specifications
| Available Models | MD 100 (Standard Handheld), MD 110 (Bluetooth®), MD 200 (Heavy-Duty AA) |
|---|---|
| Protection Rating | IP68 Waterproof & Floats |
| Pre-Programmed Methods | Up to 120+ Water Quality Parameters |
| Optical Wavelengths | Up to 6 wavelengths: 430, 530, 560, 580, 610, 660 nm (Accuracy: ± 1 nm) |
| Photometric Accuracy | 3% Full Scale (at T = 20°C – 25°C) |
| Photometric Resolution | 0.01 A (Absorption Range: -2500 to 2500 mAbs) |
| Memory Capacity | 16 data sets (MD 100, MD 200) / 125 datasets (MD 110) |
| Dimensions (L x W x H) | 190 x 110 x 55 mm (MD 200) |
Full Product Description
The Lovibond MD 100, MD 110, and MD 200 series deliver laboratory-grade photometric precision in rugged, waterproof handheld instruments designed for demanding field applications. Powered by high-grade interference filters and stable LED light sources housed in a transparent sample chamber, the series provides rapid, repeatable testing across drinking water, industrial wastewater, cooling towers, and swimming pool facilities.
Model Breakdown & Capabilities:
1. Lovibond MD 100:
• Architecture: Ultra-compact, ergonomic handheld footprint (net weight ~260 g, 155 x 75 x 35 mm).
• Data Logging: Internal ring buffer memory storing the last 16 datasets with timestamp and parameter values.
• Interface: Infrared optical data transfer (requires optional IRiM module).
• Battery Life: 4 x AAA batteries providing ~17 continuous hours or 5,000 tests.

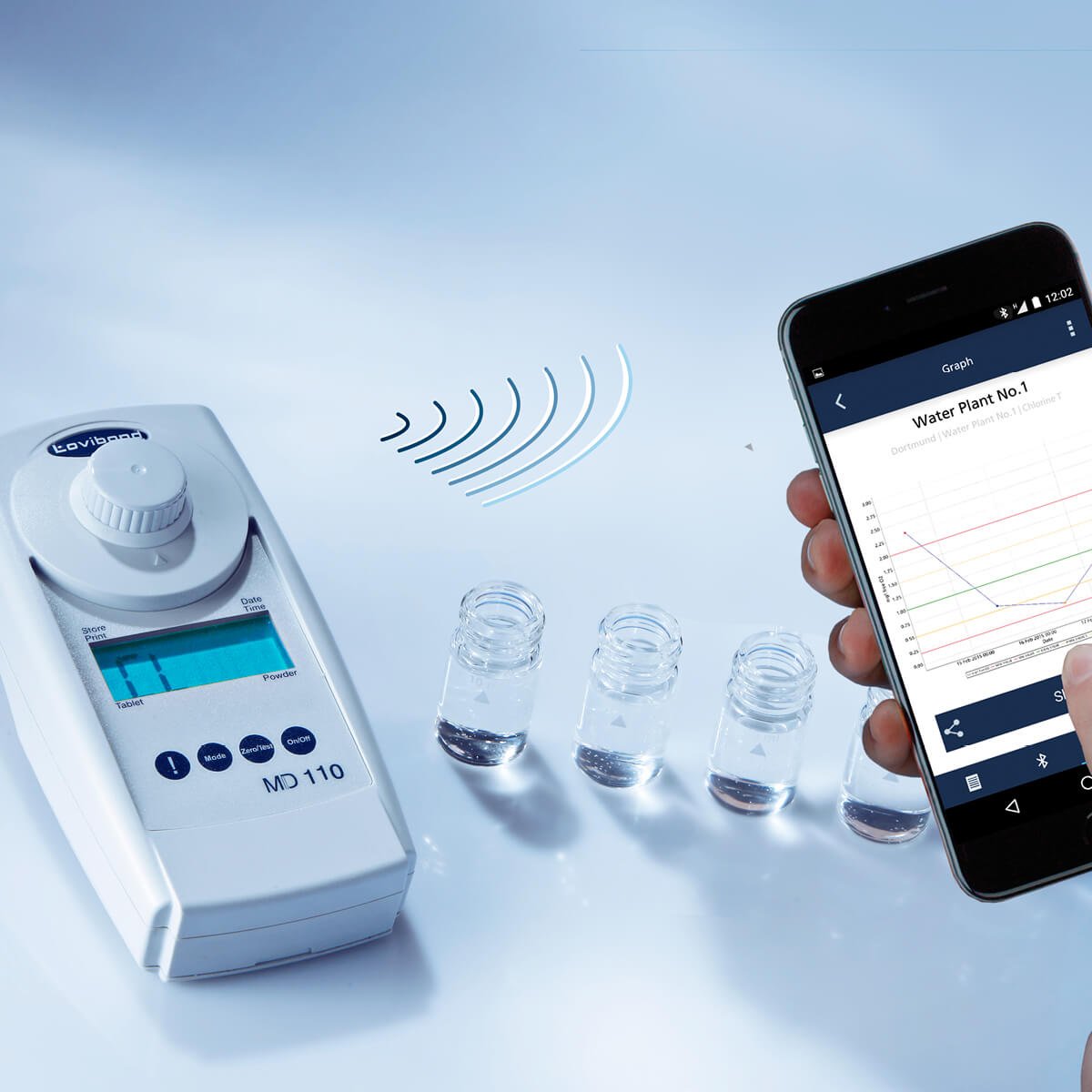

2. Lovibond MD 110 (Bluetooth® 4.0 Enabled):
• Architecture: Modern handheld instrument with built-in Bluetooth® 4.0 interface.
• Data Logging: High-capacity internal ring memory storing up to 125 complete datasets.
• Smart Data Flow: Connects seamlessly to iOS/Android smart devices via the Lovibond AquaLX app or to PCs via Bluetooth USB dongles for export and instant PDF/CSV reporting.
• One Time Zero (OTZ): Eliminates repetitive blank calibrations between consecutive tests of identical water samples, saving operator time.

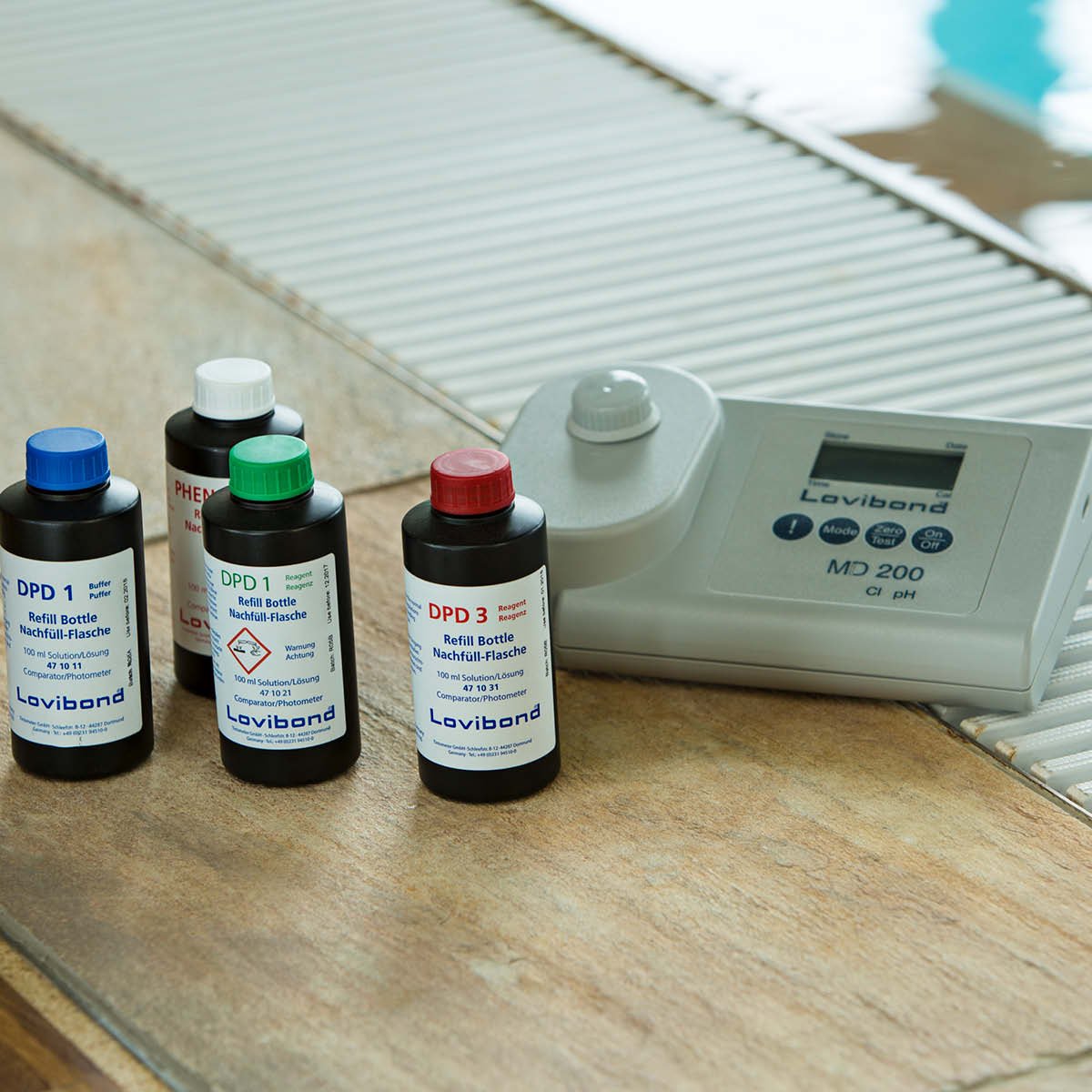

3. Lovibond MD 200:
• Architecture: Heavy-duty hybrid field-bench photometer (190 x 110 x 55 mm, net weight ~455 g).
• Data Logging: 16 datasets internal memory.
• High Operational Endurance: Powered by 4 x AA alkaline batteries delivering up to 53 continuous operating hours or 15,000 tests without display backlight.
• Multi-Wavelength Optics: Supports up to 6 interference filter wavelengths (430, 530, 560, 580, 610, and 660 nm) for broad analytical parameter coverage.
Reagent System Flexibility:
Fully compatible with long-term stable Lovibond blister-foil tablet reagents, VARIO powder packs, and liquid chemical reagents.
