IKA Overhead Stirrers (NANOSTAR 7.5 & MICROSTAR Series)
Overhead stirrers for low to high viscosities, processing capacities up to 200 liters, electronic safety circuits, and Labworldsoft control.
Technical Specifications
| Max. Stirring Quantity (H2O) | 5 L (NANO/MICRO 7.5) / 10 L (MICRO 15) / 20 L (MICRO 30) |
|---|---|
| Speed Range | 0 / 50 – 2.000 rpm (7.5) / 0 / 50 – 1.000 rpm (15) / 0 / 50 – 500 rpm (30) |
| Max. Viscosity | 4.000 mPas (7.5) / 8.000 mPas (15) / 20.000 mPas (30) |
| Max. Torque at Stirring Shaft | 7,5 Ncm (7.5) / 15 Ncm (15) / 30 Ncm (30) |
| Temperature & Torque Trend | -10 to 350°C & Torque Trend Monitoring (Control Models) |
| Chuck Range Diameter | 0,5 – 8,2 mm |
| Display | LED (Digital) / Glass LCD (Control) |
| Protection Class | IP 54 |
Full Product Description
IKA offers the ideal overhead stirrer for your stirring and mixing tasks in the lab - for lower to high viscosities. IKA overhead stirrers effortlessly process stirring quantities of up to 200 liters. IKA lab stirrers stand out due to their indispensable features, including an electronic safety circuit, a digital display, two speed ranges, and a controlling option via the lab software Labworldsoft®. A broad spectrum of stirring tools is the key to successful mixing. Functionality, safety, and longevity are the main goals in the development of IKA's overhead stirrers.
Product Series Highlights:

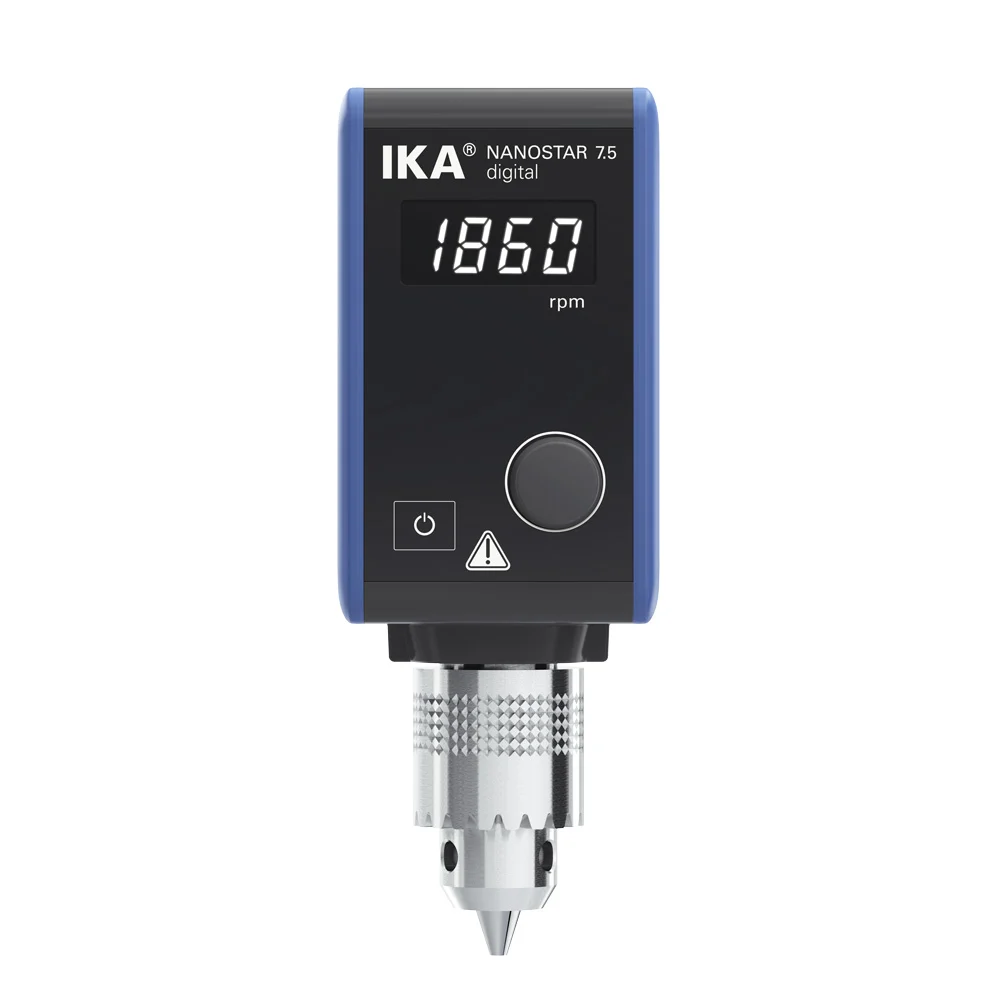

1. IKA NANOSTAR 7.5 digital:
- Ultra-compact footprint (53 x 147 x 130 mm) delivering 7.5 Ncm constant torque for batches up to 5 L.

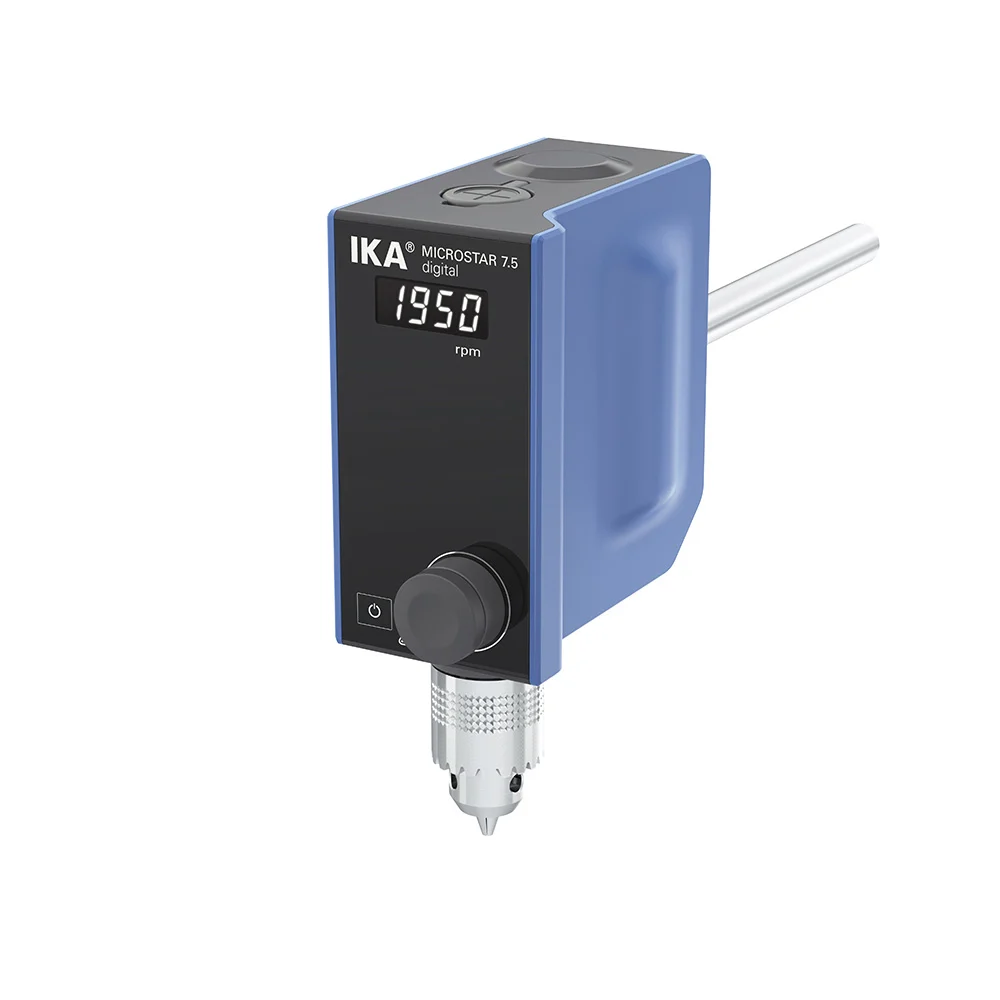

2. IKA MICROSTAR Series (7.5, 15, 30):
- Available in Digital and Control versions (glass LCD display with included temperature sensor and torque trend monitoring).
- Maintenance-free brushless DC motors with robust IP 54 housing protection.
