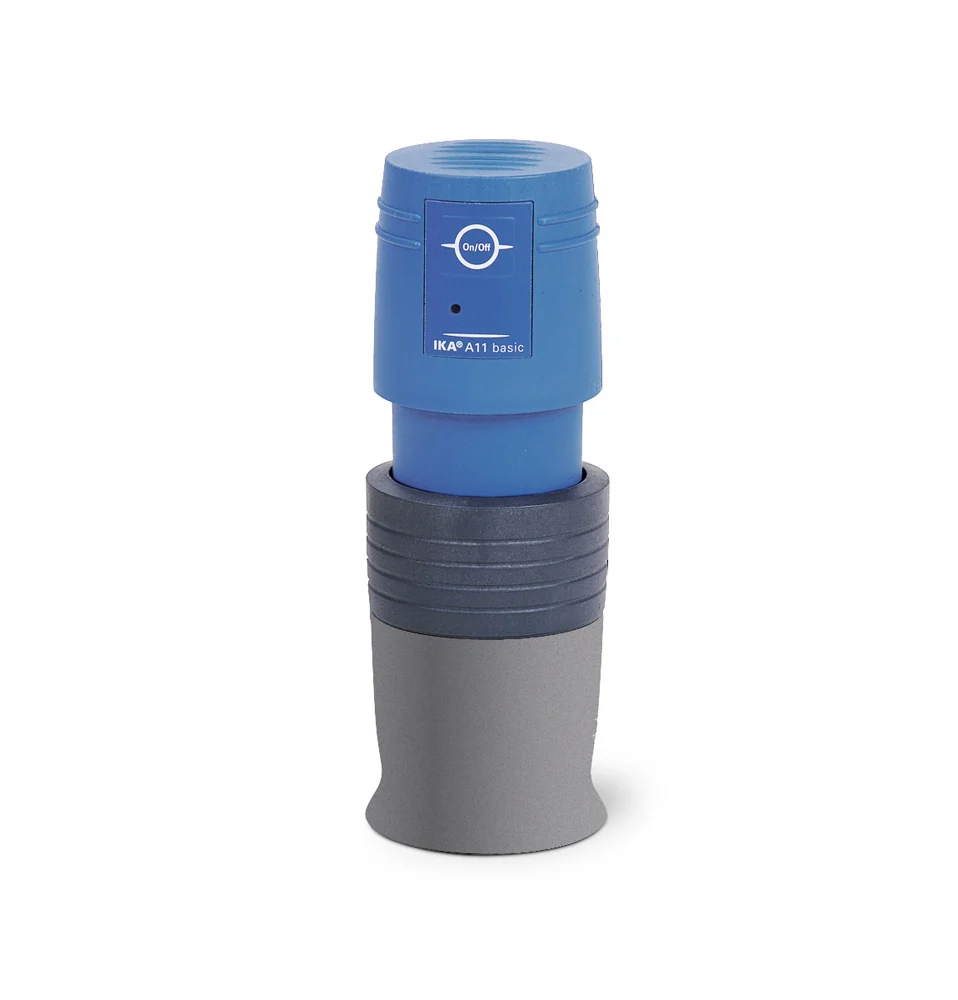

IKA Laboratory Grinding Mills (A 11 basic & M 20 Universal Mill)
High-speed laboratory grinding mills operating up to 28,000 rpm for crushing soft, hard, or fibrous materials down to fine powder levels.
Technical Specifications
| Operating Principle | Cutting & Impact Grinding |
|---|---|
| Max. Rotational Speed | 28,000 rpm (Circumferential Speed: 53 m/s) |
| Useful Chamber Volume | Max. 80 ml (A 11 basic) |
| Max. Feed Hardness | 6 Mohs (Max. Feed Grain Size: 10 mm) |
| Motor Rating (Input / Output) | 160 W / 100 W |
Full Product Description
Crush soft, hard or fibrous material with an IKA grinder mill. Batch grind brittle or hard, dry items with laboratory mills, like our M 20 Universal mill and A 11 basic. Our laboratory grinding mills feature variable speed control, enabling precise:
• Grinding fineness levels
• Coarse size selection
• Powder-level milling
• Consistent testing
• Industrial and scientific applications
A 11 basic Specifications:
- High rotational speed of 28,000 rpm (53 m/s circumferential velocity) with an 80 ml grade 1.4571 stainless steel milling bowl.
- Dual pulverization modes: blade cutting for fibrous/elastic matrices and impact beater milling for hard substances up to 6 Mohs.
- Safe cryogenic embrittlement using dry ice or liquid nitrogen (LN2).
• Grinding fineness levels
• Coarse size selection
• Powder-level milling
• Consistent testing
• Industrial and scientific applications
A 11 basic Specifications:
- High rotational speed of 28,000 rpm (53 m/s circumferential velocity) with an 80 ml grade 1.4571 stainless steel milling bowl.
- Dual pulverization modes: blade cutting for fibrous/elastic matrices and impact beater milling for hard substances up to 6 Mohs.
- Safe cryogenic embrittlement using dry ice or liquid nitrogen (LN2).
