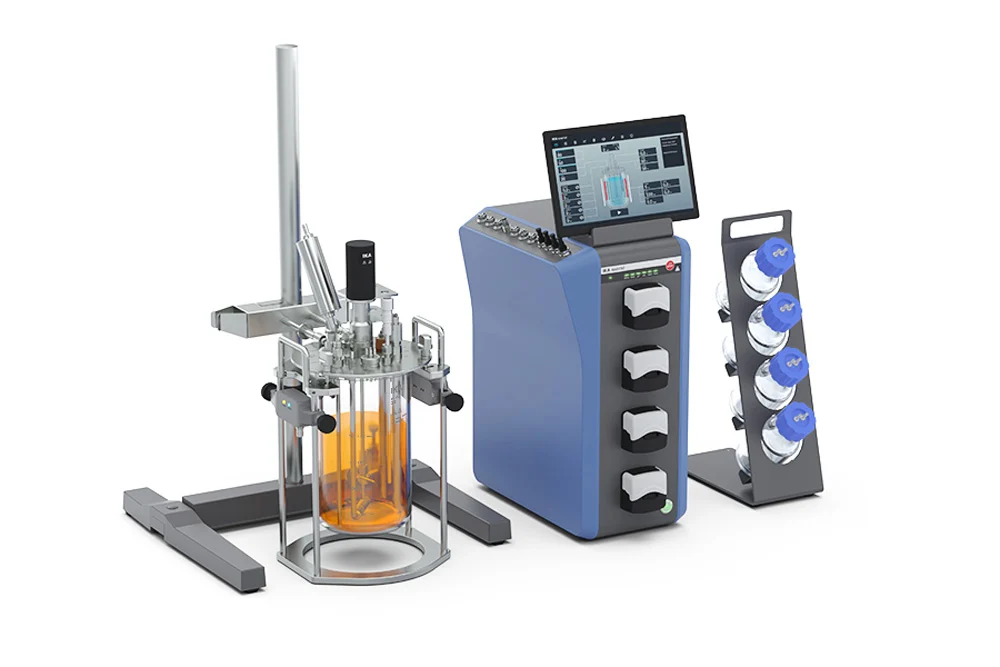

IKA HABITAT Research Bioreactor & Fermentation System
The first laboratory bioreactor with a motor size matching the volume, featuring an ergonomic lid stand and photobioreactor capabilities.
Technical Specifications
| Speed Range | 1 – 2.200 rpm |
|---|---|
| Number of Pump Heads | 4 (Acid, Base, Anti-Foam, Level) |
| Pump Flow Rate | 0,3 – 270 ml/min |
| Gas Flow Rate | 0,01 – 2 l/min (Cell) / 0,1 – 20 l/min (Ferment) |
| Mass Flow Controllers (MFC) | 4 Built-in Channels (Air, O2, N2, CO2) |
| Interfaces | USB, PC Connect, RS232, Ethernet, SU Connect |
| Dimensions (W x H x D) | 224 x 624 x 405 mm |
Full Product Description
HABITAT Research by IKA is the first laboratory bioreactor with a motor size that matches the volume. Its simple handling and short training time make it user-friendly. As the first bioreactor with a lid stand, it ensures ergonomic working and a tidy laboratory. In combination with a circulator, it serves as your fermenter, and with the addition of light panels, it becomes your photobioreactor.
Key Features & Advantages:
• Ergonomic & Tidy Workspace: Central control unit paired with an intuitive touch tablet interface and organized cable/tubing management.
• Built-in 4-Pump System: Features 4 integrated peristaltic pump heads (Acid, Base, Anti-Foam, Level) offering flow rates from 0.3 to 270 ml/min.
• Precise Mass Flow Controllers (MFC): 4 separate MFC channels for automated blending of Air, O2, N2, and CO2 gases.
• Photobioreactor Modality: Seamless integration with calibrated LED light panels for phototrophic cultivation (e.g. microalgae).
• Comprehensive Process Control: Regulates stirrer speed, gas flush, liquid feed, temperature, pH, DO, foam, and level (optional: turbidity, conductivity, and off-gas analysis).
Key Features & Advantages:
• Ergonomic & Tidy Workspace: Central control unit paired with an intuitive touch tablet interface and organized cable/tubing management.
• Built-in 4-Pump System: Features 4 integrated peristaltic pump heads (Acid, Base, Anti-Foam, Level) offering flow rates from 0.3 to 270 ml/min.
• Precise Mass Flow Controllers (MFC): 4 separate MFC channels for automated blending of Air, O2, N2, and CO2 gases.
• Photobioreactor Modality: Seamless integration with calibrated LED light panels for phototrophic cultivation (e.g. microalgae).
• Comprehensive Process Control: Regulates stirrer speed, gas flush, liquid feed, temperature, pH, DO, foam, and level (optional: turbidity, conductivity, and off-gas analysis).
