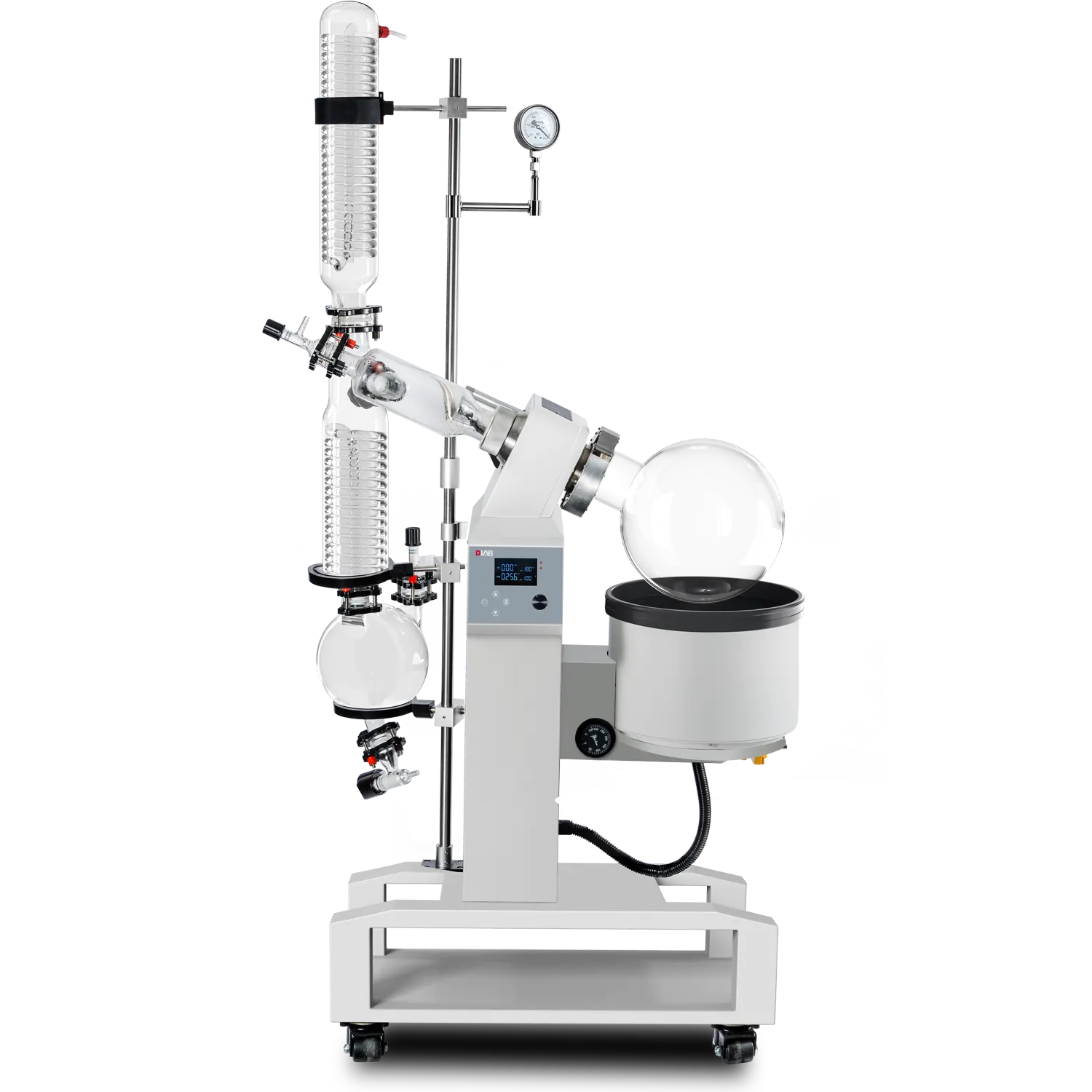

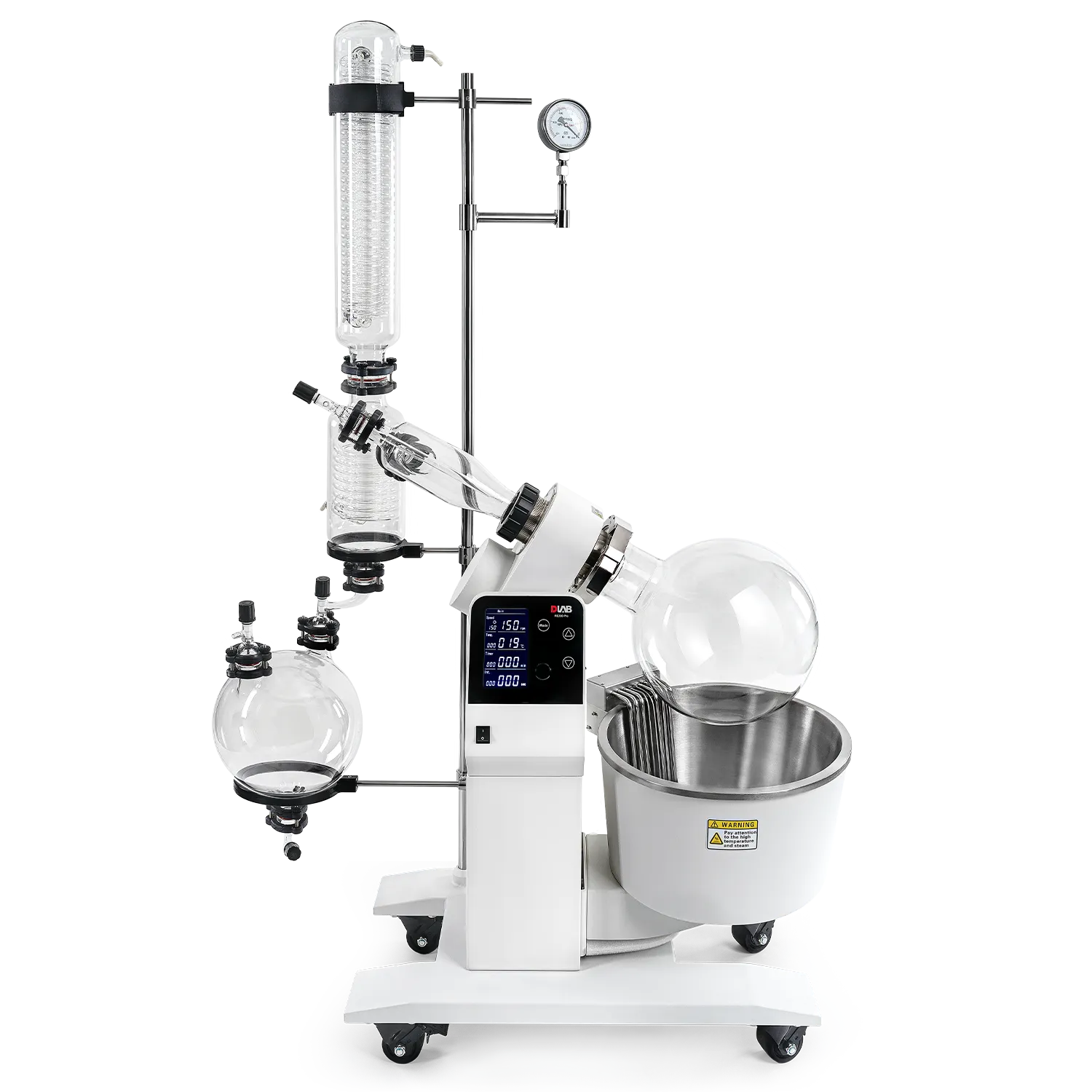

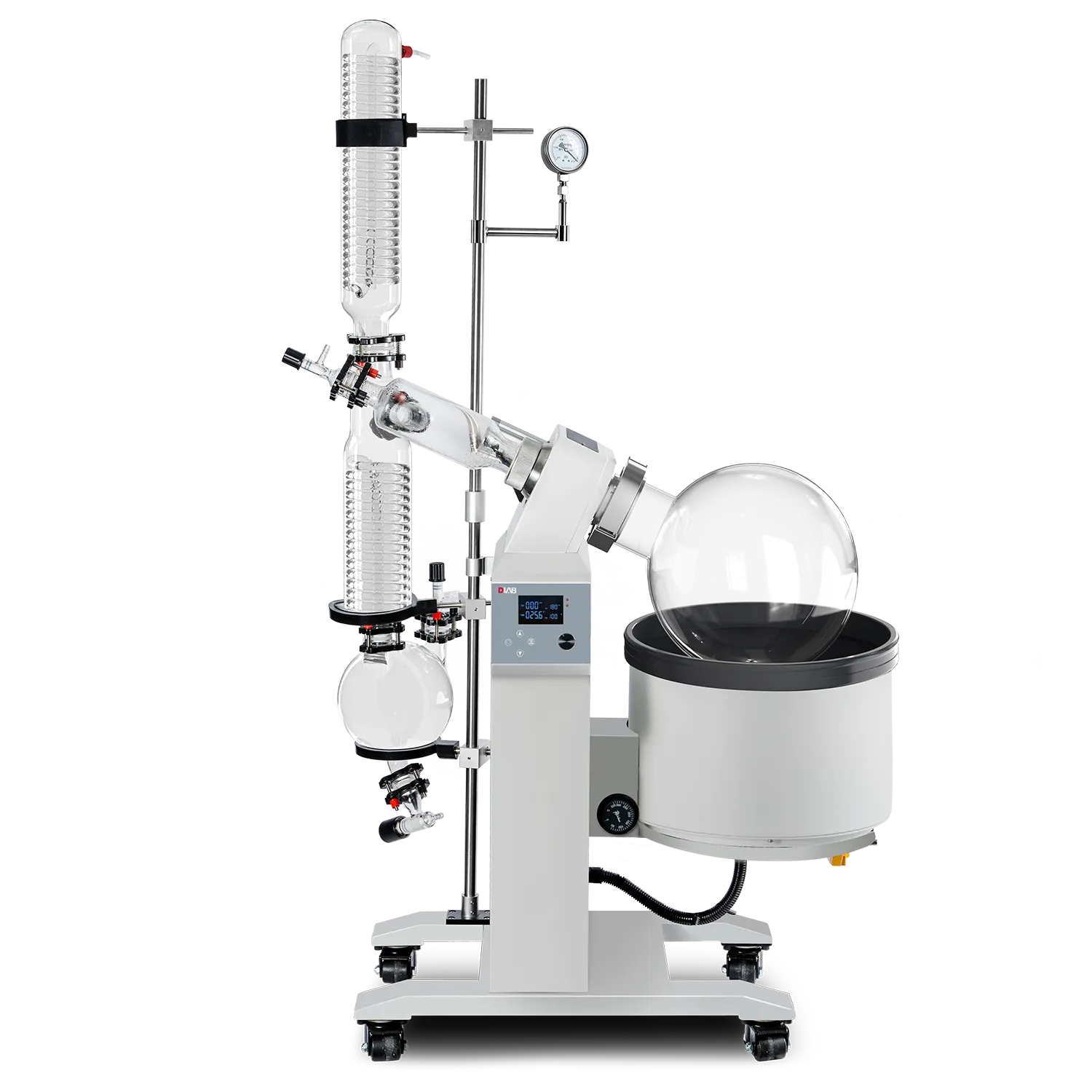

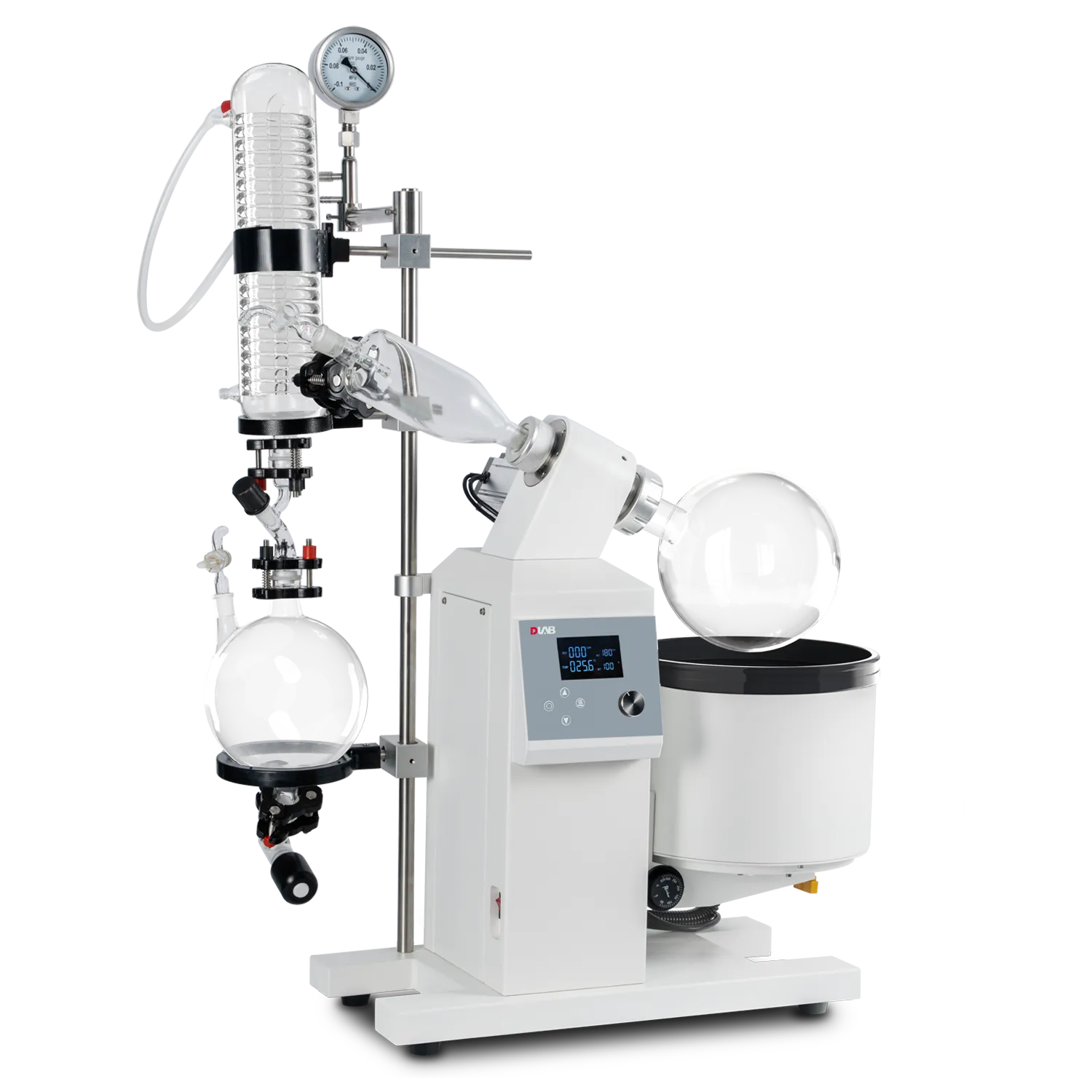

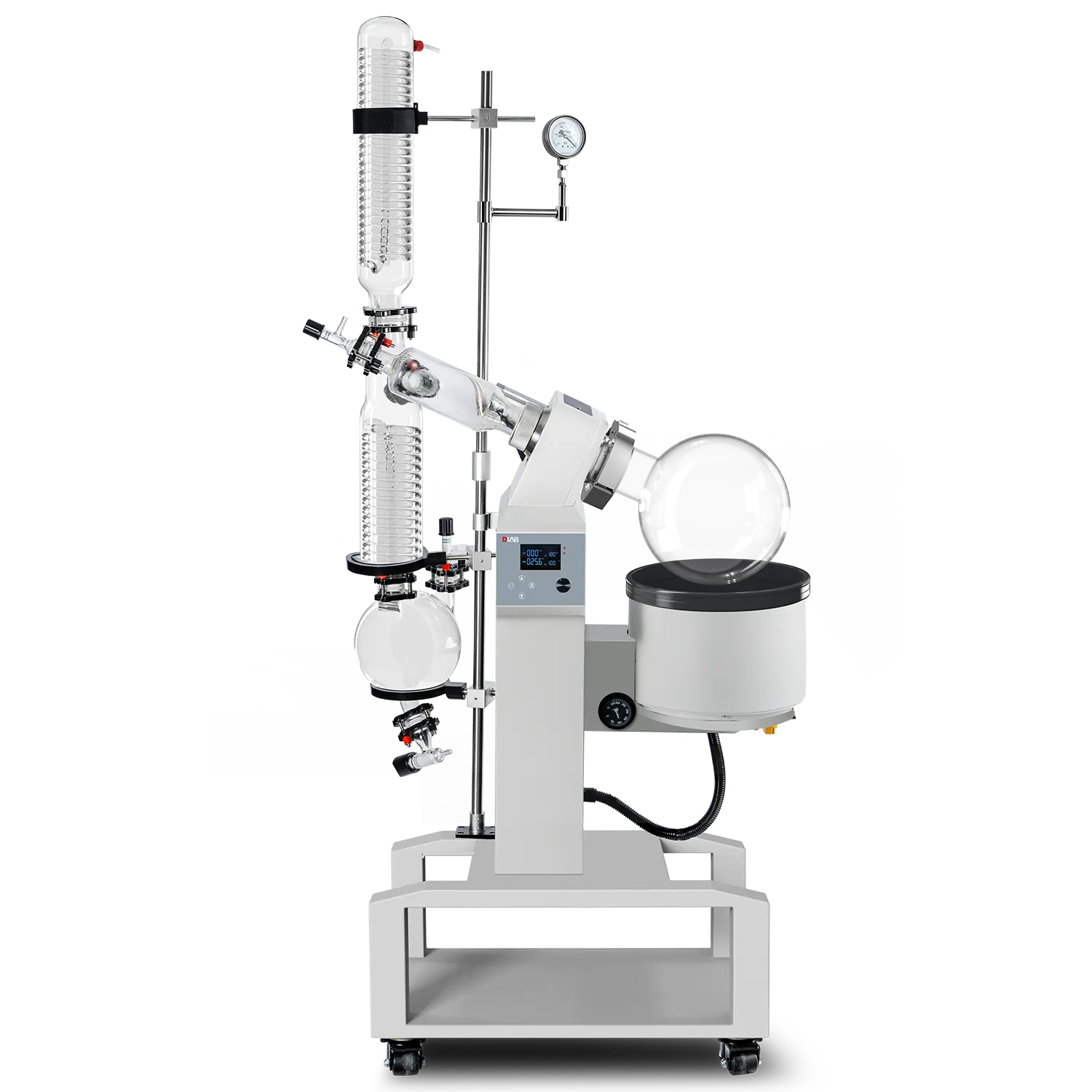

DLAB Rotary Evaporator Series (Benchtop & Pilot Scale Models)
Comprehensive digital rotary evaporator line for chemical distillation and solvent recovery, available from benchtop lab scale (50 mL – 3 L) to industrial pilot scale (5 L – 50 L) with automated motorized and manual lifting options.
Technical Specifications
| Benchtop Models | RE100-Pro (Motorized Lift), RE100-S (Manual Lift) |
|---|---|
| Pilot Scale Models | RE500-E (5L), RE1000-E (10L), RE200-Pro (20L), RE2000-E (20L), RE5000-E (50L) |
| Flask Volume Range | 50 – 3.000 mL (Benchtop) hingga 50 Liter (Pilot) |
| Heating Temperature Range | Room Temp. to 180°C (RE100 / RE200) / 20 to 100°C (RE-E Series) |
| Max. Evaporation Capacity | 1.56 L/h (Water) up to 11.0 L/h (75% Ethanol) |
| Rotational Speed Range | 20 – 200 rpm (Brushless DC Motor) |
| Cooling Surface | 1,200 cm² / 1,700 cm² |
| Safety Systems | Boil-Dry Protection, 220°C Overheat, >50°C Surface Warning |
Full Product Description
DLAB Scientific offers a comprehensive series of digital Rotary Evaporators tailored for concentration, solvent distillation, crystallization, and chemical separations. Designed for seamless integration with chemical-duty vacuum pumps, digital vacuum controllers, and low-temperature recirculating chillers to deliver an end-to-end, high-efficiency recovery system.
Complete Breakdown of Available Models:
1. Benchtop Laboratory Scale Series:
• RE100-Pro:
- Flask Volume: 50 – 3,000 mL (supports 3 L flask with thickened glass axis).
- Evaporation Rate: Max. 1.56 L/h (H2O).
- Temperature Range: Room Temp. to 180°C.
- Lift Mechanism: Motorized Automatic Lift.
- Display: Integrated LCD Digital Display.

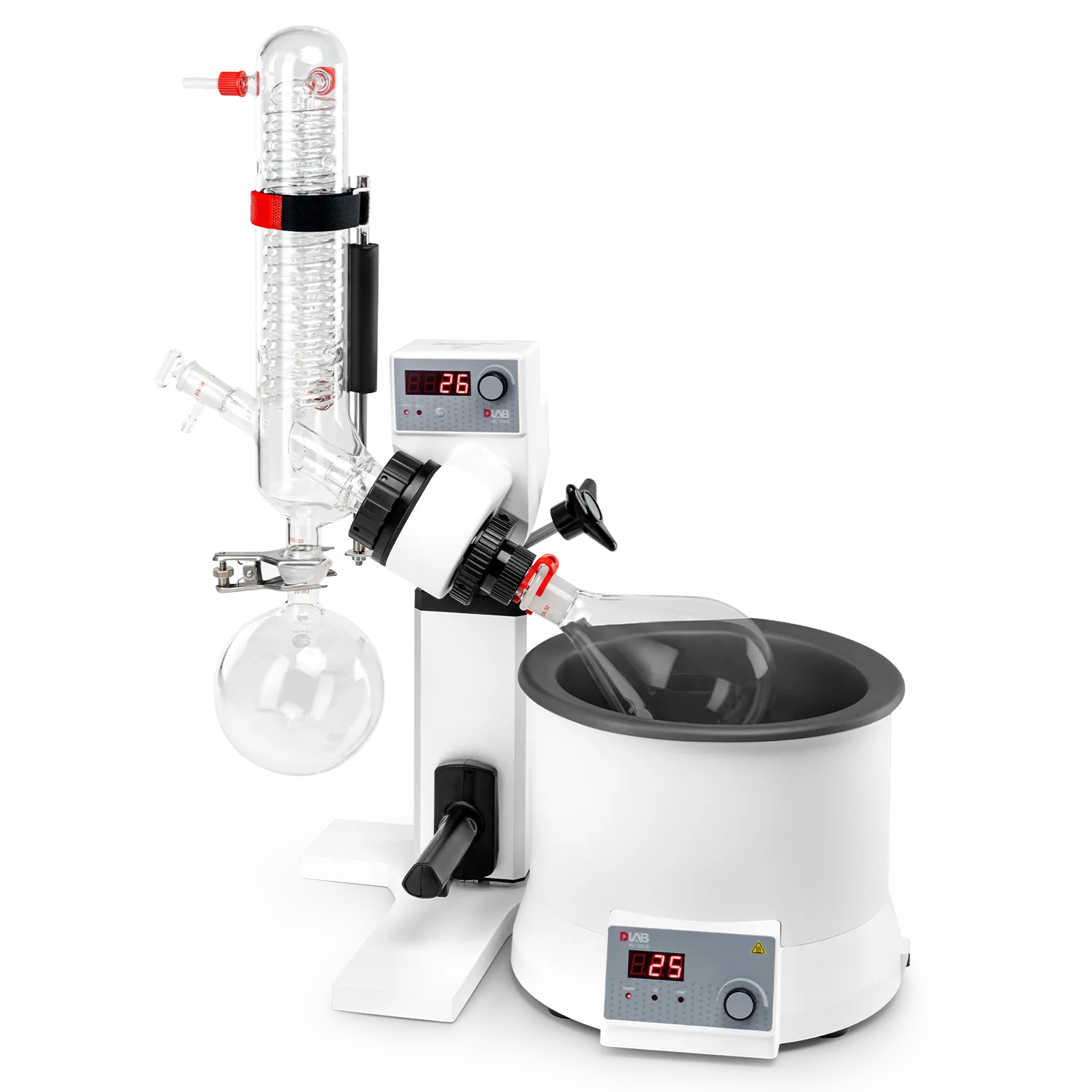

• RE100-S:
- Flask Volume: 50 – 3,000 mL.
- Evaporation Rate: Max. 1.56 L/h (H2O).
- Temperature Range: Room Temp. to 180°C.
- Lift Mechanism: Manual 110 mm stroke combined with 100 mm auxiliary lift.
- Display: Dual LED/LCD Digital Display.
2. Pilot and Industrial Production Scale Series:
• RE200-Pro (20 L):
- Flask Volume: 20 L.
- Evaporation Rate: Max. 4.5 L/h (75% Ethanol).
- Temperature Range: Room Temp. to 180°C.
- Lift Mechanism: Motorized Automatic Lift | Display: LCD.
• RE500-E (5 L):
- Flask Volume: 5 L.
- Evaporation Rate: Max. 2.0 L/h (75% Ethanol).
- Temperature Range: 20 to 100°C.
- Lift Mechanism: Motorized Automatic Lift | Display: LCD.
• RE1000-E (10 L):
- Flask Volume: 10 L.
- Evaporation Rate: Max. 3.8 L/h (75% Ethanol).
- Temperature Range: 20 to 100°C.
- Lift Mechanism: Motorized Automatic Lift | Display: LCD.
• RE2000-E (20 L):
- Flask Volume: 20 L.
- Evaporation Rate: Max. 5.0 L/h (75% Ethanol).
- Temperature Range: 20 to 100°C.
- Lift Mechanism: Motorized Automatic Lift | Display: LCD.
• RE5000-E (50 L):
- Flask Volume: 50 L.
- Evaporation Rate: Max. 11.0 L/h (75% Ethanol).
- Temperature Range: 20 to 100°C.
- Lift Mechanism: Motorized Automatic Lift | Display: LCD.
Key Safety and Engineering Features:
• Standalone 5L Heating Bath: Supports water and oil modes with PID precision (±1°C water accuracy) and 220°C hardware overheat cut-off.
• Boil-Dry Safety Interlock: Automatically shuts off heating power if operated without liquid.
• Reversible Stirring Profile: 20 – 200 rpm speed range with clockwise and counter-clockwise intervals.
• High-Efficiency Condenser: 1,200 cm² or 1,700 cm² cooling area sealed with double-spring PTFE rings.
• Ejection Mechanism: Effortless release fixture for fast and safe evaporating flask removal.
