DLAB Magnetic Hotplate Stirrer Series (550, 500, 380, 340 & 280 Series)
Comprehensive magnetic hotplate stirrer portfolio spanning heating ranges from 120°C up to 550°C, stirring capacities up to 30L, and data logging options via SD Card/RS232.
Technical Specifications
| 550 & 500 Series Models | MS10-H500-Pro (30L, 500°C), MS7-H550-Pro (20L, 550°C), MS7-H550-S (10L, 550°C) |
|---|---|
| 340 Series & Multi-Position | MS-H-ProM, MS-H-ProA, MS-H-Pro+, MS-H-ProT, MS-H-S, MS-H340-S4 (4 x 10L) |
| 380 & 280 Series Models | MS-H380-Pro (5L, 380°C), MS-H280-B100 (100 mL), MS-H280-B250 (250 mL) |
| Stirring Capacity Range | 100 mL up to 30 Liters (H2O) |
| Heating Temperature Range | 120°C up to 550°C (Series Dependent) |
| Speed Range | 100 – 1,500 rpm (±1 rpm Resolution) |
| Data Logging & Connectivity | SD Card Slot (MS10-H500-Pro) / RS232 Port (Pro Series) |
| External Sensor Accuracy | PT1000 Sensor with ±0.2°C Accuracy |
Full Product Description
DLAB Magnetic Hotplate Stirrers are precision instruments engineered for mixing low-to-medium viscosity liquids, solid-liquid suspensions, chemical syntheses, and bio-pharmaceutical research. DLAB delivers a complete portfolio structured across distinct operating temperatures (120°C to 550°C), plate footprints, and multi-position configurations.
Complete Breakdown of Available Models by Series:
1. 500 Series (10-Inch High Capacity Model):

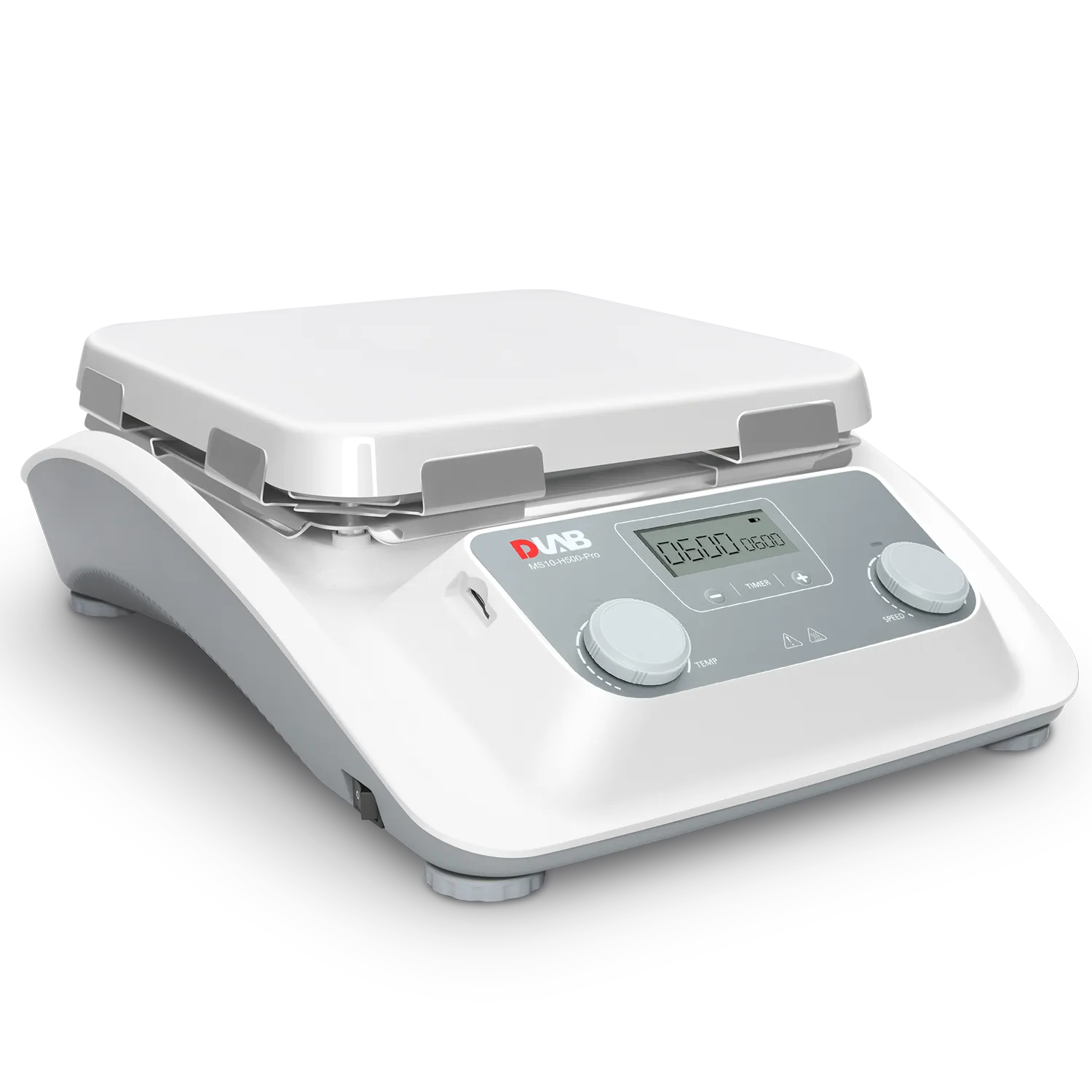

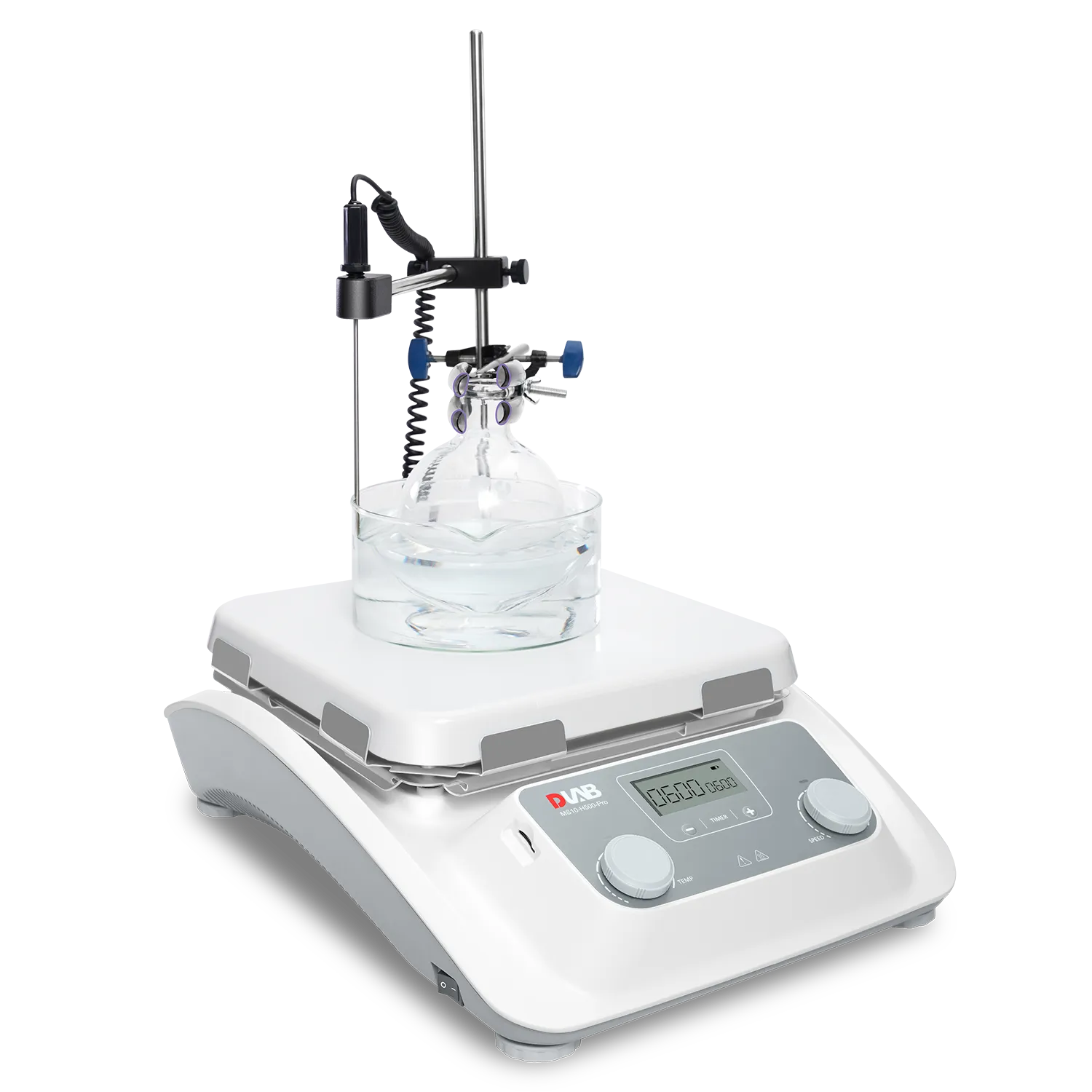

• MS10-H500-Pro:
- Work Plate Footprint: 254 x 254 mm (10-inch) solid chemical-resistant glass ceramic.
- Stirring Capacity: High-volume up to 30 Liters (H2O).
- Heating Temperature: Ambient to 500°C (1,500 W heating output).
- Speed Range: 100 – 1,500 rpm (±1 rpm resolution).
- Display: Dual LCD digital monitors for speed and temperature.
- External Temperature Probe: PT1000 sensor achieving ±0.2°C accuracy.
- Data Connectivity: Integrated SD Card slot for onboard real-time logging.
- Timer Function: Programmable runtime from 1 min to 99 hrs 59 mins.
2. 550 Series (High-Temperature Glass Ceramic Series):
• MS7-H550-Pro: 184 x 184 mm (7-inch) plate, Max. 550°C, 20 L capacity, LCD display, RS232 port, 1,000 W.
• MS7-H550-S: 184 x 184 mm (7-inch) plate, Max. 550°C, 10 L capacity, LED display, 1,000 W.
3. 340 Series (General Lab Round Plate Ø 135 mm, Max. 340°C, 20 L Stirring Volume):
• MS-H-ProM: LCD Digital display, external sensor ready.
• MS-H-ProA: LCD Digital display with advanced control logic.
• MS-H-Pro+: LCD Digital display with enhanced thermal transfer.
• MS-H-ProT: LCD Digital display with built-in runtime countdown timer.
• MS-H-S: Analog scale knob interface.
• MS-H340-S4 (4-Positions Multi-Stirrer): 4 independent stirring stations (10 L x 4 vessels).
4. 380 Series:
• MS-H380-Pro: 140 x 140 mm ceramic-coated plate, Max. 380°C, 5 L stirring capacity, LCD display.
5. 280 Series (Beaker Heating Mantle Stirrers):
• MS-H280-B100: Heating mantle for 100 mL beakers, Max. 280°C, LED display.
• MS-H280-B250: Heating mantle for 250 mL beakers, Max. 280°C, LCD display.
Safety Protocols:
• Flashing "HOT" surface indicator when plate temperature exceeds 50°C, active even when the heating element is turned off.
• Redundant hardware overheat cut-off mechanisms triggering at 540°C / 580°C.
