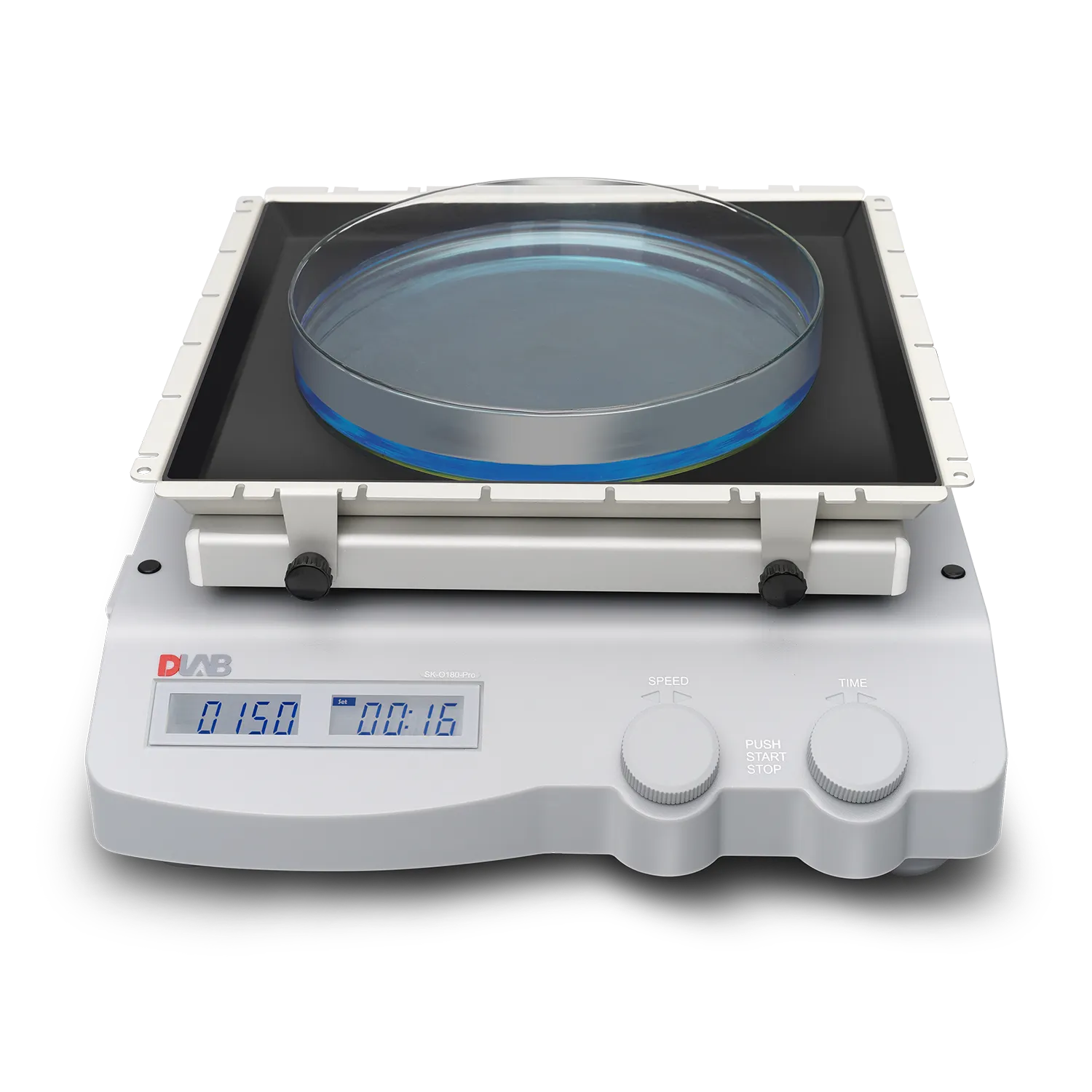

DLAB Digital Laboratory Shaker Series (Orbital, Linear, Rocking & 3D Models)
Digital multi-motion laboratory shaker line (orbital, linear, rocking, and 3D tumbling) equipped with brushless DC motors, 2 kg to 10 kg payloads, and CO2 incubator compatibility.
Technical Specifications
| Orbital Shaker Models | SK-O330-Pro (7.5 kg), SK-O180-Pro (2.5 kg), SK-O330-M (3 kg), SK-O180-S (2 kg) |
|---|---|
| Linear Shaker Models | SK-L330-Pro (7,5 kg), SK-L180-Pro (2,5 kg), SK-L180-S (2 kg) |
| Rocking Shaker Models | SK-R330-Pro (10 kg), SK-R1807-S (2 kg) |
| 3D Shaker Models | SK-D3309-Pro (5 kg), SK-D1810-S (2 kg) |
| Load Capacity Range | 2.0 kg up to 10.0 kg |
| Speed Range | 10 – 800 rpm (Model & Motion Dependent) |
| Display Types | Dual LCD Digital (Pro Series) / LED Display (S Series) |
| Timer Range | 1 min to 99 hrs 59 mins / Continuous Mode |
Full Product Description
DLAB Laboratory Shakers are engineered for mixing applications in culture dishes, flasks, and beakers. Ideal for aeration, microbiological cultures, cell suspensions, chemical extractions, and gel staining/destaining. The robust, moisture-resistant design makes them fully operational within environmental chambers and CO2 incubators.
Comprehensive Breakdown of Available Models by Motion Type:
1. Orbital Shakers (Circular Motion):
• SK-O330-Pro:
- Platform Size: 32 x 32 cm | Display: Dual LCD Digital.
- Speed Range: 100 – 500 rpm | Orbit Stroke: 10 mm.
- Max. Load Capacity: 7.5 kg.
• SK-O180-Pro:
- Platform Size: 25 x 24.5 cm | Display: Dual LCD Digital.
- Speed Range: 100 – 800 rpm | Orbit Stroke: 4 mm.
- Max. Load Capacity: 2.5 kg.
• SK-O330-M:
- Platform Size: 33.5 x 33.5 cm | Display: LCD Digital.
- Speed Range: 70 – 400 rpm | Max. Load Capacity: 3.0 kg.
• SK-O180-S:
- Platform Size: 26.8 x 26.8 cm | Display: LED Display.
- Speed Range: 40 – 200 rpm | Max. Load Capacity: 2.0 kg.
2. Linear Shakers (Reciprocal Horizontal Motion):
• SK-L330-Pro:
- Platform Size: 32 x 32 cm | Display: LCD Digital.
- Speed Range: 100 – 350 rpm | Max. Load Capacity: 7.5 kg.
• SK-L180-Pro:
- Platform Size: 25 x 24.5 cm | Display: LCD Digital.
- Speed Range: 100 – 350 rpm | Max. Load Capacity: 2.5 kg.
• SK-L180-S:
- Platform Size: 26.8 x 26.8 cm | Display: LED Display.
- Speed Range: 40 – 200 rpm | Max. Load Capacity: 2.0 kg.
3. Rocking Shakers (Gentle See-Saw Motion):
• SK-R330-Pro:
- Platform Size: 30 x 28.5 cm | Display: LCD Digital.
- Speed Range: 10 – 70 rpm | Max. Load Capacity: 10.0 kg (Heavy Duty).
• SK-R1807-S:
- Platform Size: 26.8 x 26.8 cm | Display: LED Display.
- Speed Range: 10 – 80 rpm | Max. Load Capacity: 2.0 kg.
4. 3D Shakers (Three-Dimensional Tumbling Action):
• SK-D3309-Pro:
- Platform Size: 30 x 28.5 cm | Display: LCD Digital.
- Speed Range: 10 – 70 rpm | Max. Load Capacity: 5.0 kg.
• SK-D1810-S:
- Platform Size: 26.8 x 26.8 cm | Display: LED Display.
- Speed Range: 10 – 80 rpm | Max. Load Capacity: 2.0 kg.
Engineering and Safety Features:
• Maintenance-Free Brushless DC Motor: Delivers quiet, smooth operation and exceptionally long operational lifespan.
• Electronic Over-Speed Detection: Protects biological cultures from agitation shocks and prevents liquid spillage.
• Modular Clamping Platforms: Accommodates universal adjustable bar fixtures, flask clamps, and non-slip rubber mats.
• Integrated PC Interface: RS232 connection with complimentary software for automated control and data logging.
